Prior to SQL Server 2014, the database compatibility level of your user databases was not typically an important property that you had to be concerned with, at least from a performance perspective. Now, with modern versions of SQL Server, database compatibility levels in SQL Server are much more important than they used to be!
Unlike the database file level (which gets automatically upgraded when you restore or attach a down-level database to an instance running a newer version of SQL Server, and which can never go back to the lower level), the database compatibility level can be changed to any supported level with a simple ALTER DATABASE SET COMPATIBILITY LEVEL = xxx command.
You are not stuck at any particular supported database compatibility level, and you can change the compatibility level back to any supported level that you wish. In many cases, most user databases never had their compatibility levels changed after a migration to a new version of SQL Server. This usually didn’t cause any issues unless you actually needed a new feature that was enabled by the latest database compatibility level.
With SQL Server 2012 and older, the database compatibility level was mainly used to control whether new features introduced with a particular version of SQL Server were enabled or not and whether non-supported old features were disabled or not. The database compatibility level was also used as a method to maintain better backwards application compatibility with old versions of SQL Server. If you didn’t have time to do full regression testing with the newest compatibility level, you could just use the previous compatibility level until you could test and modify your applications if needed.
Database Compatibility Levels in SQL Server

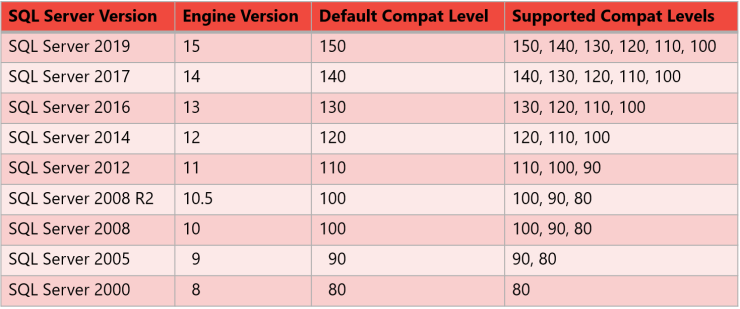

The table below shows the major versions of SQL Server and their default and supported database compatibility levels.
New Database Creation
When you create a new user database in SQL Server, the database compatibility level will be set to the default compatibility level for that version of SQL Server. So for example, a new user database that is created in SQL Server 2019 will have a database compatibility level of 150. The exception to this is if you have changed the compatibility level of the model system database to a different supported database compatibility level, then a new user database will inherit its database compatibility level from the model database.
Database Restore or Attach
If you restore a full database backup that was taken on an older version of SQL Server to an instance that is running a newer version of SQL Server, then the database compatibility level will stay the same as it was on the older version of SQL Server, An exception to this is if the old database compatibility level is lower than the minimum supported database compatibility level for the newer version of SQL Server. In that case, the database compatibility level will be changed to the lowest supported version for the newer version of SQL Server.
For example, if you were to restore a SQL Server 2005 database backup to a SQL Server 2017 instance, the database compatibility level for that restored database would be changed to 100. You will get the same behavior if you detach a database from an older version of SQL Server, and then attach it to a newer version of SQL Server.
This general behavior is not new, but what is new and important is what else happens when you change a user database to database compatibility level 120 or newer. These additional changes, that can have a huge impact on performance, don’t seem to be widely known and understood in the wider SQL Server community.
I still see many database professionals and their organizations just doing what I call “blind upgrades” where they go from SQL Server 2012 or older to SQL Server 2014 or newer (especially SQL Server 2016 and newer), where they don’t do any serious performance regression testing to understand how their workload will behave on the new native compatibility level and whether the additional configuration options that are available will have a positive effect or not.
Database Compatibility Level 120
This was when the “new” cardinality estimator (CE) was introduced in SQL Server 2014. In many cases, most of your queries ran faster when using the “new” cardinality estimator, but it was fairly common to run into some queries that had major performance regressions with the new cardinality estimator. Using database compatibility level 120 means that you will be using the “new” CE unless you use an instance-wide trace flag or a query-level query hint to override it.
In April 2014, Joe Sack wrote the classic whitepaper “Optimizing Your Query Plans with the SQL Server 2014 Cardinality Estimator” that explains the background and behavior of this change. If you saw performance regressions on some queries with the new CE, SQL Server 2014 did not have that many options for alleviating the performance issues caused by the new CE. Joe’s whitepaper covers those options in great detail, but essentially, you were limited to instance-level trace flags or query-level query hints to control which cardinality estimator was used by the query optimizer, unless you wanted to revert back to database compatibility level 110 or lower.
The reason I called it the “new” CE in quotes is because there is now no single “new” CE. Each new version of SQL Server since SQL Server 2014 has CE and query optimizer changes tied to the database compatibility level. The new, more accurate terminology that is relevant on SQL Server 2016 and newer is CE120 for compatibility level 120, CE130 for for compatibility level 130, CE140 for for compatibility level 140, and CE150 for for compatibility level 150.
Database Compatibility Level 130
When you are on SQL Server 2016 or newer, using database compatibility level 130 will use CE130 by default, and will enable a number of other performance related changes. The effects of global trace flags 1117, 1118, and 2371 are enabled with database compatibility level 130. You will also get the effect of global trace flag 4199 for all query optimizer hotfixes that were released before SQL Server 2016 RTM.
Database Scoped Configuration Options
SQL Server 2016 also introduced database scoped configuration options, which give you the ability to control some behaviors that were formerly configured at the instance level, using an ALTER DATABASE SCOPED CONFIGURATION command. The two most relevant database scoped configuration options for this discussion are LEGACY_CARDINALITY ESTIMATION and QUERY_OPTIMIZER_HOTFIXES.
LEGACY_CARDINALITY ESTIMATION enables the legacy CE (CE70) regardless of the database compatibility level setting. It is equivalent to trace flag 9481, but it only affects the database in question, not the entire instance. It allows you to set the database compatibility level to 130 in order to get the other functional and performance benefits, but use the legacy CE database-wide (unless overridden by a query-level query hint).
The QUERY_OPTIMIZER_HOTFIXES option is equivalent to trace flag 4199 at the database level. SQL Server 2016 will enable all query optimizer hotfixes before SQL Server 2016 RTM when you use the 130 database compatibility level (without enabling trace flag 4199). If you do enable TF 4199 or enable QUERY_OPTIMIZER_HOTFIXES, you will also get all of the query optimizer hotfixes that were released after SQL Server 2016 RTM.
SQL Server 2016 SP1 also introduced the USE HINT query hints that are easier to use and understand than the older QUERYTRACEON query hints that you had to use in SQL Server 2014 and older. This gives you even more fine-grained control over optimizer behavior that is related to database compatibility level and the version of the cardinality estimator that is being used. You can query sys.dm_exec_valid_use_hints to get a list of valid USE HINT names for the exact build of SQL Server that you are running.
Database Compatibility Level 140
When you are on SQL Server 2017 or newer, using database compatibility level 140 will use CE140 by default. You also get all of the other performance related changes from 130, plus new ones as detailed here. SQL Server 2017 introduced the new adaptive query processing features, and they are enabled by default when you are using database compatibility level 140. These include batch mode memory grant feedback, batch mode adaptive joins, and interleaved execution.
Database Compatibility Level 150
When you are on SQL Server 2019 or newer, using database compatibility level 150 will use CE150 by default. You also get all of the other performance related changes from 130 and 140, plus new ones as detailed here. SQL Server 2019 added even more performance improvements and behavior changes that are enabled by default when a database is using compatibility mode 150. A prime example is scalar UDF inlining, which automatically inline many scalar UDF functions in your user databases. This may be one of the most important performance improvements for some workloads.
Another example is the intelligent query processing feature, which is a superset of the adaptive query processing feature in SQL Server 2017. New features include table variable deferred compilation, approximate query processing, and batch mode on rowstore.
There are also eighteen new database scoped configuration options in SQL Server 2019 that give you database-level control of more items that are also affected by trace flags or the database compatibility level. It gives you even more fine-grained control of these higher level changes that are enabled by default with database compatibility level 150.
Migrating to a modern version of SQL Server (meaning SQL Server 2016 or newer) is significantly more complicated than it was with legacy versions of SQL Server. Because of the changes associated with the various database compatibility levels and various cardinality estimator versions, it is actually very important to put some thought, planning, and actual testing into what database compatibility level you want to use on the new version of SQL Server that you are migrating your existing databases to.
Microsoft’s recommended upgrade process is to upgrade to the latest SQL Server version, but keep the source database compatibility level. Then, enable Query Store on each database and collect baseline data on the workload. Next, you set the database compatibility level to the latest version, and then use Query Store to fix your performance regressions by forcing the last known good plan.
You really want to avoid a haphazard “blind” migration where you are blissfully unaware of how this works and how your workload will react to these changes. Changing the database compatibility level to an appropriate version and using the appropriate database scoped configuration options, along with appropriate query hints where absolutely necessary, is extremely important with modern versions of SQL Server.
Another thing to consider (especially for ISVs) is that Microsoft is starting to really push the idea that you should think about testing and certifying your databases and applications to a particular database compatibility level rather than a particular version of SQL Server. Microsoft provides query plan shape protection when the new SQL Server version (target) runs on hardware that is comparable to the hardware where the previous SQL Server version (source) was running and the same supported database compatibility level is used both at the target SQL Server and source SQL Server.
The idea here is that once you have tested and certified your applications on a particular database compatibility level, such as 130, you will get the same behavior and performance if you move that database to a newer version of SQL Server (such as SQL Server 2017 or SQL Server 2019) as long as you are using the same database compatibility level and you are running on equivalent hardware.
If you have any questions about this post, please ask me here in the comments or on Twitter. I am pretty active on Twitter as GlennAlanBerry. Thanks for reading!
